Making a Clock for the Nintendo E-Reader

Writing up a custom clock for the Nintendo E-Reader

I am building a Nonogram game (aka Picross) for the Nintendo GBA E-Reader. Nonograms traditionally have a 30 minute time limit. The E-Reader's built in ERAPI has a clock, but it maxes out at about 18 minutes. So I had no choice but to write my own. It was very simple actually. But I figured I'd blog about it as an example of what it is like to write games in z80 assembly for the E-Reader and using ERAPI.

An early screenshot of my Nonogram game. Very much a work in progress.

ERAPI's DrawTime

What is ERAPI? It is the "E-Reader API". It is a collection of functions built into the E-Reader that games can use. More info on it and general E-Reader development in my post about making Solitaire for the E-Reader.

ERAPI has ERAPI_DrawTime, ERAPI_DrawTimeNewValue and ERAPI_DrawTimeDeltaValue to draw times to the screen. These functions are easy to use and take up almost no precious space to use them.

To use them, first you establish a time struct. It is a collection of values that inform the DrawTime functions where and how to draw the time.

time_struct:
    .db  0     ; bg #
    .db  0     ; palette #
    .db 10     ; x in tiles
    .db 8      ; y in tiles
    .dw 4107   ; system sprite
               ; to use as the font
    .db 11     ; separator
               ; 10=.
               ; 11=:
               ; 12=/
               ; 13=-
    .db 1      ; format
               ; 0=mm:ss:ff
               ; 1=mm:ss
               ; 2=mmss
               ; 3=mm
               ; 4=mm:ss
               ; 5=mm, 6=mm
    .dw 65000  ; starting value
    .db 0      ; loaded sprite?

.db means "place a byte here" and .dw means "place a word here", which is a two byte value. So this struct in C would look like

struct TimeStruct {
    uint8 backgroundIndex;
    uint8 paletteIndex;
    uint8 x;
    uint8 y;
    uint16 spriteId;
    uint8 separator;
    uint8 format;
    uint16 startingValue;
    uint8 loadedSprite
};

I don't know what the loaded sprite byte is for, I've not investigated it yet. Everything else is pretty self explanatory. For the system sprite, that is the "font". You can see them all here. Turn off pokemon and other to just see the number fonts.

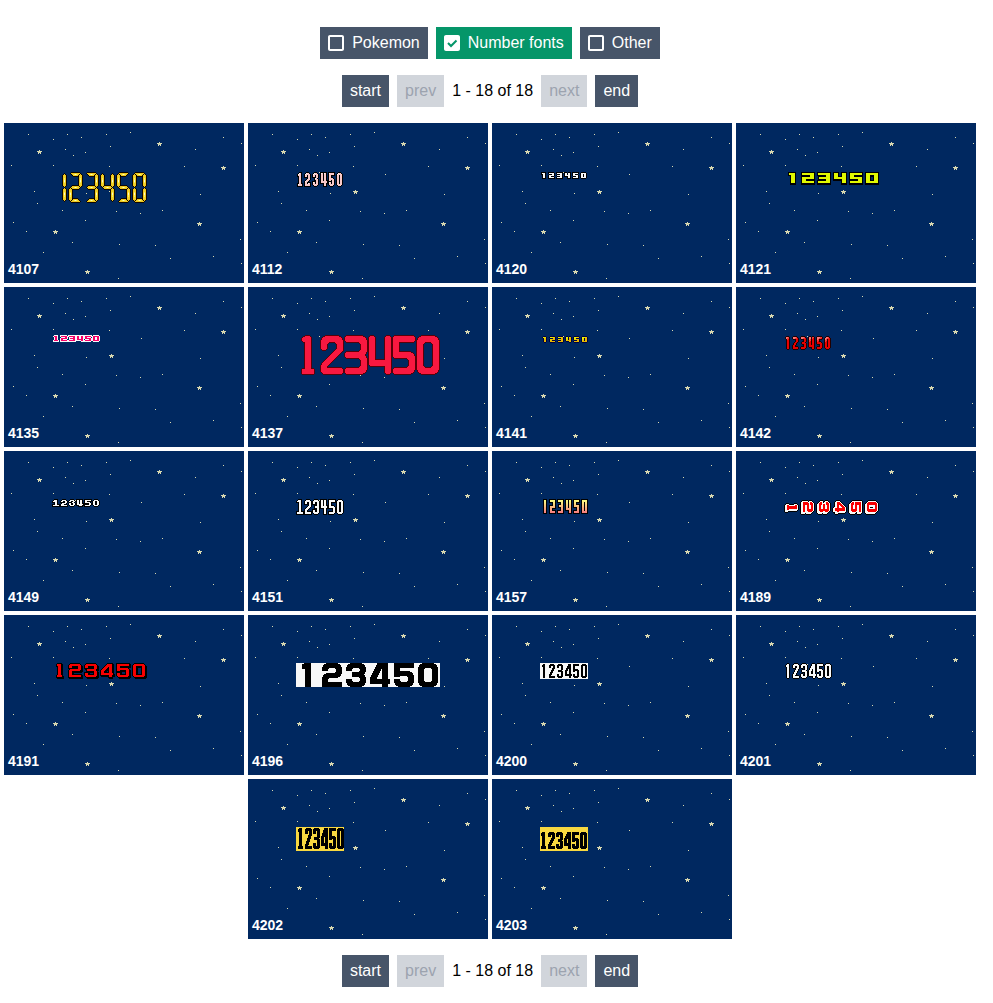

All of the number fonts available on the E-Reader

To draw a time to the screen, call ERAPI_DrawTime and give it your time struct.

ld hl, time_struct
rst 0
.db ERAPI_DrawTime

;; force a screen refresh so the time gets drawn right away
ld a, 1
halt

Then the time will show up as expected.

The value word is what the time is in system frames. There are about 60 frames per second on the GBA, so if you set this value to 60, the clock will show 00:01. This is a two byte value, so the maximum number it can accept is 65535. Hmmmm... what is that in seconds? It is 1092 seconds, so the max time the ERAPI clock can show is 18:12. Once it goes to 18:13, the clock rolls over to zero and starts over.

Changing the time

The other functions are used to change the time as the game progresses. ERAPI_DrawTimeNewValue will set an entirely new time value.

;; our new time value
ld de, 12345
ld hl, time_struct
.db ERAPI_DrawTimeNewValue

This is exactly the same as ERAPI_DrawTime, except it is taking the time value from de instead of the time_struct.

And ERAPI_DrawTimeDeltaValue adds the new value onto the current one. Typically you call this every frame to have the clock either count up or down, to act as a timer.

;; the delta value
ld de, 1
ld hl, time_struct
.db ERAPI_DrawTimeDeltaValue

But that max time though

As we discussed above, the maximum time the ERAPI clock can show is 18 minutes and 12 seconds. A Nonogram game traditionally gives you 30 minutes to solve a puzzle. What to do?

One approach is to use the ERAPI clock twice. Set it to 15 minutes and also set up two tokens somewhere. Once the 15 minutes counts down, take away a token, and restart the clock again at 15 minutes. Once that 15 minutes elapses, take away the second token and now it's game over. Sure, this would work, but wow it's clunky.

I decided to take the space hit and implement my own clock.

Making a clock from scratch

Fortunately ERAPI still has other functions available that allow us to make our clock with ease. The ERAPI_DrawNumber* functions are similar to the DrawTime functions, but just draw straight numbers to the screen. Also there is ERAPI_Div for division, and ERAPI_Mod for performing a modulus (which is dividing two numbers and just keeping the remainder).

Yeah, function calls just to divide numbers. The z80 is an 8 bit processor which has no native way to divide. Dividing two numbers with the z80 requires writing a complex division routine, which would be slow and take up a lot of space. I am very grateful ERAPI_Div and ERAPI_Mod exist.

The overall gameplan is this, first in JavaScript for simplicity.

let frameCounter = 0;
// start the clock/timer at 30 minutes
let secondCounter = 30 * 60;

const minutesNumberStruct = {
    backgroundIndex: 0,
    paletteIndex: 14,
    x: 10,
    y: 4,
    systemSprite: 4149,
    numberOfDigits: 2,
    numberOfExtraDigits: 0,
    // pad out numbers with zeroes
    // so say 9 gets shown as 09
    fillWith: 0,
    loadedSprite: 0,
    value: 30,
};

const secondsNumberStruct = {
    backgroundIndex: 0,
    paletteIndex: 14,
    x: 13,
    y: 4,
    systemSprite: 4149,
    numberOfDigits: 2,
    numberOfExtraDigits: 0,
    // pad out numbers with zeroes
    // so say 9 gets shown as 09
    fillWith: 0,
    loadedSprite: 0,
    value: 30,
};

// called once at the start of the game
function clockInit() {
    // get our numbers loaded into ERAPI
    // and up onto the screen
    ERAPI_DrawNumber(minutesNumberStruct);
    ERAPI_DrawNumber(secondsNumberStruct);
}

function clockFrame() {
    frameCounter += 1;

    if (frameCounter === 60) {
        // a second has elapsed
        frameCounter = 0;
        secondCounter -= 1;
    }

    const minutes = secondsCounter / 60;
    ERAPI_DrawNumberNewValue(minutesNumberStruct, minutes);
    const seconds = secondsCounter % 60;
    ERAPI_DrawNumberNewValue(secondsNumberStruct, seconds);
}

There's a lot of code related to setup. The number structs are very similar to the time structs. But actually working out the clock and drawing its current value to the screen is quite simple.

And here it is an z80 assembly.

CL_MINUTES_X_TILE = 9
CL_MINUTES_Y_TILE = 1
CL_SECONDS_X_TILE = 12
CL_SECONDS_Y_TILE = 1

clock_init:
    ;; init the number drawing
    ld hl, _cl_minutes_number
    rst 0
    .db ERAPI_DrawNumber

    ld hl, _cl_seconds_number
    rst 0
    .db ERAPI_DrawNumber

    ret


clock_frame:
    ;; increment the frame counter
    ld a, (_cl_frame_counter)
    inc a
    ;; did it just hit 60 frames, ie one second?
    cp 60
    ;; if no, skip down below
    jr nz, clock_frame__skip_reset_frame_counter
    ;; we've counted an entire second, reset frame counter
    ld a, 0
    ;; and decrement seconds
    ld hl, (_cl_seconds_counter)
    dec hl
    ld (_cl_seconds_counter), hl

    clock_frame__skip_reset_frame_counter:
    ;; save the new value for the frame counter
    ld (_cl_frame_counter), a

    ;; now draw the current time to the screen
    call _cl_render

    ret

_cl_render:
    ;; draw minutes
    ld hl, (_cl_seconds_counter)
    ld de, 60
    ;; hl = hl/de
    rst 8
    .db ERAPI_Div
    ;; hl is now secondsCounter / 60
    ;; which is the current minutes

    ;; move number to de, where DrawNumberNewValue needs it
    push hl
    pop de
    ld hl, _cl_minutes_number
    ;; draw the new minutes value to the screen
    rst 0
    .db ERAPI_DrawNumberNewValue

    ;; draw seconds
    ld hl, (_cl_seconds_counter)
    ld de, 60
    ;; hl = hl%de
    rst 8
    .db ERAPI_Mod
    ;; hl is now secondsCounter % 60
    ;; which is the current seconds

    ;; move number to de, where DrawNumberNewValue needs it
    push hl
    pop de
    ld hl, _cl_seconds_number
    ;; draw the new seconds value to the screen
    rst 0
    .db ERAPI_DrawNumberNewValue

    ret


_cl_seconds_counter:
    ;; 30 minutes
    .dw 30 * 60
_cl_frame_counter:
    .db 0

_cl_minutes_number:
    .db 0 ; background index
    .db 14 ; palette #
    .db CL_MINUTES_X_TILE ; x in tiles
    .db CL_MINUTES_Y_TILE ; y in tiles
    .dw 4149 ; system sprite to use as the font
    .db 2 ; number of digits
    .db 0 ; number of extra zeroes on right
    .db 1 ; 0 fill with spaces, 1 fill with zeroes
    .db 0 ; loaded sprite?
    .dw 0 ; value

_cl_seconds_number:
    .db 0 ; background index
    .db 14 ; palette #
    .db CL_SECONDS_X_TILE ; x in tiles
    .db CL_SECONDS_Y_TILE ; y in tiles
    .dw 4149 ; system sprite to use as the font
    .db 2 ; number of digits
    .db 0 ; number of extra zeroes on right
    .db 1 ; 0 fill with spaces, 1 fill with zeroes
    .db 0 ; loaded sprite?
    .dw 0 ; value

If you're not familiar with z80 assembly, that is a lot to take in. It's pretty much identical to the JavaScript version. If you take it line by line and compare it to the JavaScript version, it will hopefully become clear.

In action

And here is the final result

Don't forget this game has a long ways to go. The final version will look very different.

The colon separator

I figured the colon in a clock would have a special name. Nope, it's just a regular ol' colon. The more you know.

The code above doesn't add the colon that goes between the minutes and seconds. That is just a simple sprite. If we could use ERAPI_DrawTime, it'd handle the colon for us. But since we are using ERAPI_DrawNumber instead, the colon is up to us. If wanted, you could also use ERAPI_SpriteAutoAnimate to show the colon blinking once per second. I decided not to do that as it was a little distracting.

How much space does it use?

The nice thing about ERAPI_DrawTime is it takes up hardly any space at all in your game. An ERAPI function call is just a handful of bytes and each time struct is 11 bytes.

My clock implementation is currently 174 bytes, plus the bytes needed to call it. That doesn't sound like much, but for an E-Reader game that is positively massive. I can probably trim the size down through some optimizations. But make no doubt, this custom clock is an expensive feature. But I feel like it is necessary, nonograms without a 30 minute timer just wouldn't be right.

Conclusion

Hopefully this blog post gave you a little taste of what writing z80 assembly for an E-Reader game is like. One day I will write up real tutorials on how to make an E-Reader game. But that won't be for a while.
